RETRO R6

The only Retro-Fit light for 6” Niches you will ever need

Universal 6” Replacement Pool Light

The only Retro-Fit light for 6” Niches you will ever need!
The Retro R6 Series unique Universal Adaptor locks into existing niches for a secure fit, and the Interchangeable Cam-Locks allow the Retro R6 to suit any niche, from 4.75 - 5.2" & 5.8 – 6.6” (Requires Q500 adapter feet- sold separately).

installation guides & videos

See for Yourself How Easy Installation Is

A Comprehensive set of Installation Videos is available for Spa Electrics Retro R6 pool light.

r6 VIDEOS

Universal ADAPTER

Retro-fit 6” Niches in any condition

Multiple Installation Options
with the Retro R6 Universal Adaptor

Interchangeable CAM-LOCK System

Simple and adaptable, the R6 bracket has been designed to include interchangeable CAM-LOCKS to suit any 6” niche (ID 4.75 - 5.2” & 5.8 -6.6” (Q500 cam-locks required- sold separately: R6C 006 Q5)).

There’s no need for expensive repair work, as Retro R6’s Universal Adaptor doesn’t rely on intact niche mounting hooks or screws for installation.

It’s patent-pending CAM-LOCKS grip the niche wall as they’re fitted, pulling the light and niche together for a secure fit.

Standard Installation

Standard Installation If the existing niche mounting hooks and screws are intact, Retro R6 supports standard installation via the HOOK TAB at the base and the front facing screw at the top.

The HOOK TAB at the base adjusts to suit all major brand niche tabs, without the need for extra washers or spacers.

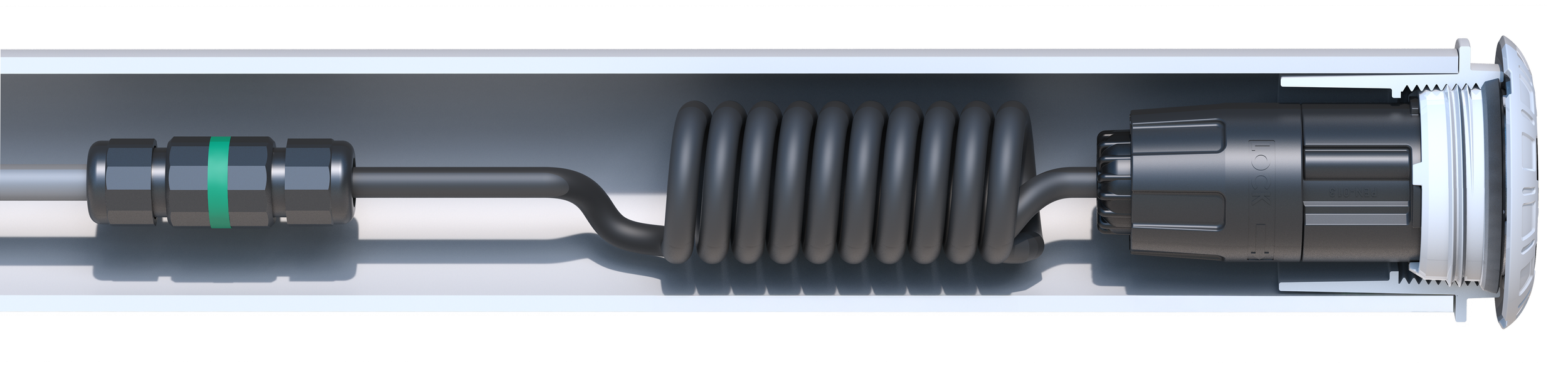

Quick connect plug

No more pulling cables during installation or servicing

Fast and reliable Installation
with Retro R6’s Quick Connect Plug

Say goodbye to changing cables forever with Retro R6’s Quick Connect Plug. Connecting to the existing pool light cable in the niche, the UL Listed Quick Connect Plug ensures fast and reliable installation while also enabling easier future servicing in the field.

Extra Safe Low Voltage 12VAC

The UL Listed Quick Connect Plug power offers safe low voltage connection for all pool users as well as for future servicing. Simply install a transformer for conversion.

Built to last

‘Super Cool’ Technology for maximum performance

Designed by Builders for Builders

Engineered for Durability and Brightness

The Retro R6 light provides superior illumination to deliver a lighting solution for your pool or spa. The forward-facing Heat Sink along with the slim design and modern profile, maximise the longevity and performance of the light.

Technical Specifications
