R10H Hayward UCL LFGUY Niche Replacement Light
The only Retro-Fit light for the Hayward® Universal ColorLogic® / CrystaLogic® LFGUY Niche you’ll ever need!
There’s no need for expensive repair work as the Retro R10H’s Adapter integrates with the existing niche, making replacement simple and seamless.
Sophisticated Simplicity
Easily install the specially designed Adapter Plate with its simple, brilliant design.

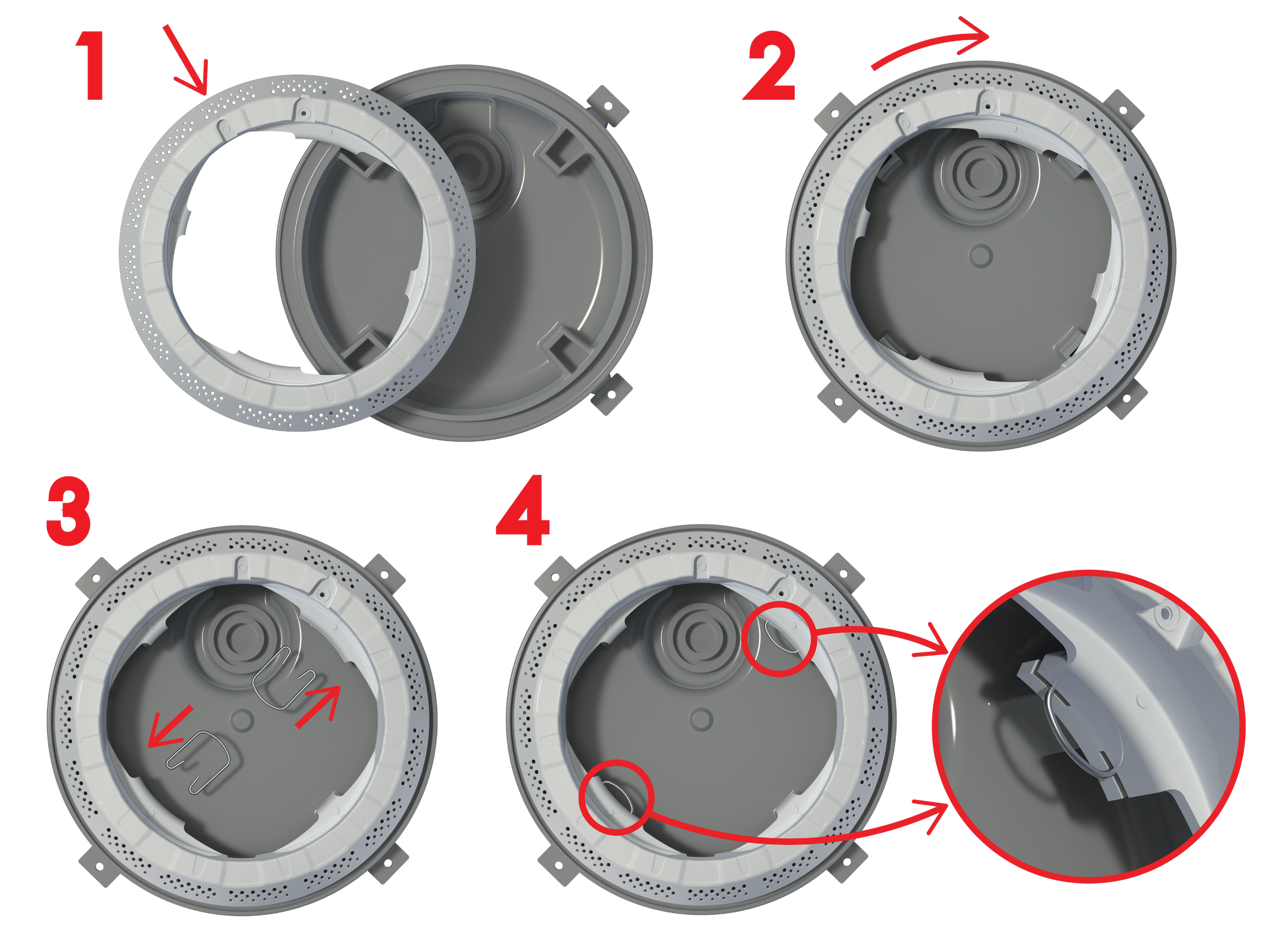

Install the Retro R10H Adapter Plate with a Turn and 2 Spring Clips
The Retro R10H incorporates 2 Stainless Steel Spring Clips which lock onto the existing Hayward® Universal ColorLogic® / CrystaLogic® Shallow Niche (LFGUY1000).
The Adapter plate is inserted into the niche with the top position at 11 o’clock.
The Adapter is then turned until the top position is at 12 o’clock.
The 2 Spring Clips are inserted through the features on the Adapter Plate and lock onto the Niche.
Confirm the Spring Clips are fully inserted and you’re done!
Quick connect plug
No more pulling cables during installation or servicing
Fast Installation with Quick Connect Plug
Say goodbye to changing cables forever with Retro R10H’s Quick Connect Plug. Connecting to the existing pool light cable in the niche, the UL Listed Quick Connect Plug ensures fast and reliable installation while also enabling easier future servicing in the field.
Extra Safe Low Voltage 12VAC
The UL Listed Quick Connect Plug power offers safe low voltage connection for all pool users as well as for future servicing. Simply install a transformer for conversion.
Built to last
‘Super Cool’ Technology for maximum performance
Engineered for Durability and Brightness
Advanced Cooling & Performance
High performance LED Lighting requires advanced cooling systems & Spa Electrics has been a pioneer in underwater heat sink technology since the introduction of LED lighting systems.
The Retro R10H’s external heat sink design pushes the boundaries of thermal technology to harness the full cooling potential of the pool.
Brighter for Longer
Retro R10H is the brightest LED retro-fit on the market with over 3000 lumen output. The unique water cooled design harnesses the full cooling potential of your pools to maximize performance and extend product life.
Retain the brilliance of a 300W halogen, while improving the look and safety of your pool with the Retro R10H.
Technical Specifications
| Light Source | Ceramic Light Engine (LED) |
| LED Colors | White: 3000k Warm or 4000k Daylight, 3200 lumen |
| Blue 1000 lumen | |
| MULTI PLUS RGB+W 3200 lumen | |
| MULTI PLUS Compatibility | Wall Switch Operation and all major pool controller brands including: Pentair IntelliTouch®, Haward Omnilogic®, Aqualink® |
| Niche Compatibility | Hayward® Universal ColorLogic® / CrystaLogic® Shallow Niche (LFGUY1000). |
| Cable Compatability | Up to 12AWG size |
| IP Rating | IPX8 |
| Installation Types | Concrete, Vinyl |
| Voltage | 10.5 to 13 v AC |
| Wattage | 45 watts |
| Ambient Operating Temperature | +32 °F to +104 °F (0 °C to +40 °C) |
| Transformer | Requires 12V AC UL listed transformer. We recommend LVX Series Transformers |
| Warranty | 3 Year Manufacturer's Warranty |
| Legal Disclaimer | Niche and Pool Controller brands, trademarks, and registered trademarks mentioned remain the property of their respective manufacturers or registered owners. Hayward® , ColorLogic® , CrystaLogic®, OmniLogic® are registered trademarks of Hayward Industries, inc. Pentair® is a registered trademark of PENTAIR FLOW SERVICES AG. IntelliTouch® is a registered trademark of Pentair Water Pool and Spa, Inc. Aqualink® is a registered trademark of ZODIAC POOL SYSTEMS LLC. |
