R10A AquaLumin® Replacement Light
The only Retro-Fit light for the Pentair® AquaLumin® you will ever need!
There’s no need for expensive repair work as the Retro R10A’s Adapter uses the existing AquaLumin® mounting bracket, making for a seamless and easy replacement.
SUPER SIMPLE
INSTALLATION
Easy Installation that Re-Uses the Existing Mounting Bracket
Install the Retro R10A Adapter Plate in 2 Easy Steps
The Retro R10A incorporates a Stainless Steel Spring Hook which fits behind the bottom feature on the existing AquaLumin® bracket.
This solution both holds the light in place and allows for variability in the condition of the existing bracket.
Then it’s just 1 screw in the top and the Retro R10A Adapter Plate is installed!

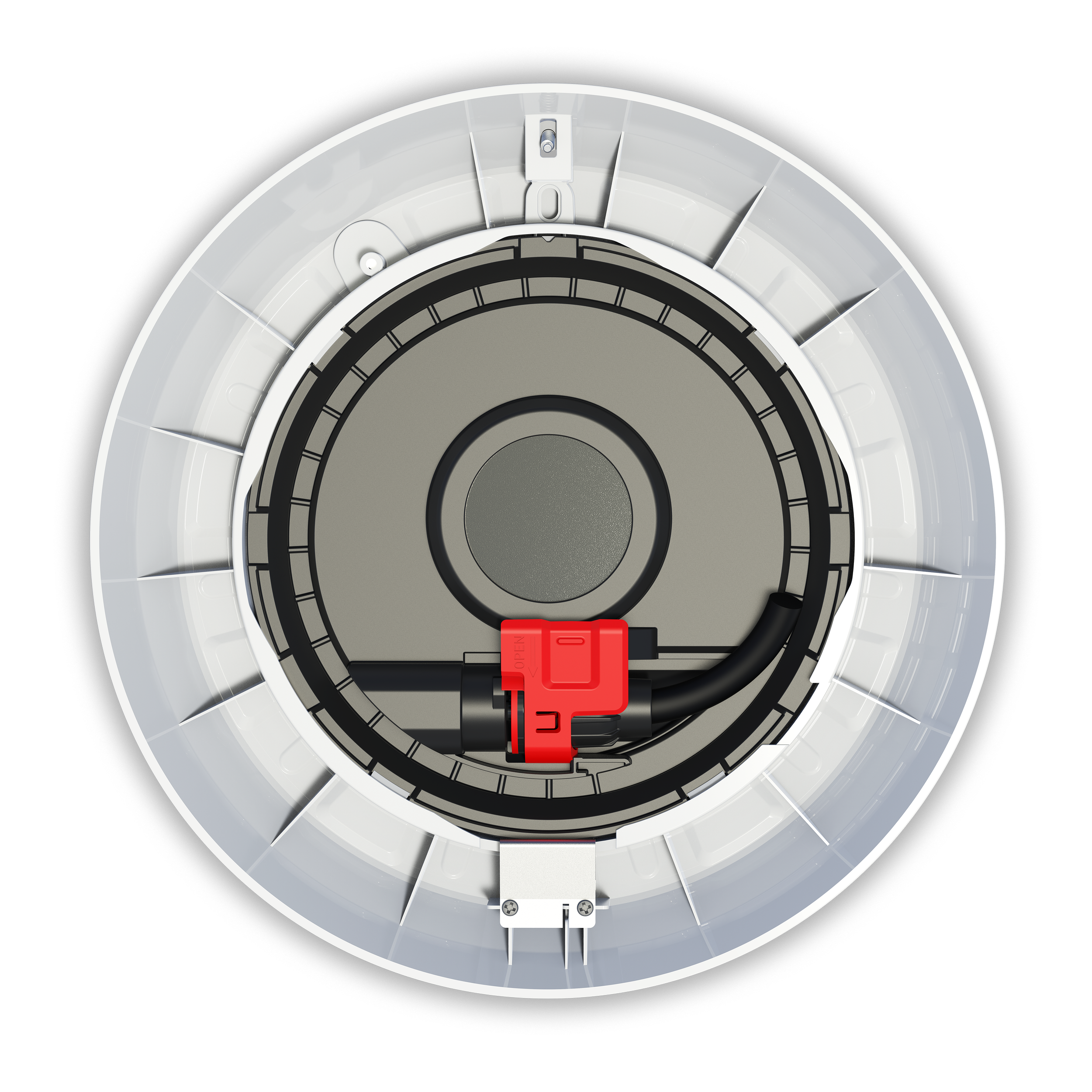

Quick connect plug
No more pulling cables during installation or servicing
Fast Installation with Quick Connect Plug
Say goodbye to changing cables forever with Retro R10A’s Quick Connect Plug. Connecting to the existing pool light cable in the niche, the UL Listed Quick Connect Plug ensures fast and reliable installation while also enabling easier future servicing in the field.
Extra Safe Low Voltage 12VAC
The UL Listed Quick Connect Plug power offers safe low voltage connection for all pool users as well as for future servicing. Simply install a transformer for conversion.
Built to last
‘Super Cool’ Technology for maximum performance
Engineered for Durability and Brightness
Advanced Cooling & Performance
High performance LED Lighting requires advanced cooling systems & Spa Electrics has been a pioneer in underwater heat sink technology since the introduction of LED lighting systems.
The Retro R10A’s external heat sink design pushes the boundaries of thermal technology to harness the full cooling potential of the pool.
Brighter for Longer
Retro R10A is the brightest LED retro-fit on the market with over 3000 lumen output. The unique water cooled design harnesses the full cooling potential of your pools to maximize performance and extend product life.
Retain the brilliance of a 300W halogen, while improving the look and safety of your pool with the Retro R10A.
Technical Specifications
| Light Source | Ceramic Light Engine (LED) |
| LED Colors | White: 3000k Warm or 4000k Daylight, 3200 lumen |
| Blue 1000 lumen | |
| MULTI PLUS RGB+W 3200 lumen | |
| MULTI PLUS Compatibility | Wall Switch Operation and all major pool controller brands including: Pentair IntelliTouch®, Haward Omnilogic®, Aqualink® |
| Niche Compatibility | All major brand niches including: American®, Anthony®, CHD®, Hayward®, Hydrel®, Jandy®, PacFab®, Paragon®, Pentair®, Purex®, Sta-Rite®, Swimquip® |
| Cable Compatability | Up to 12AWG size |
| IP Rating | IPX8 |
| Installation Types | Concrete, Vinyl |
| Voltage | 10.5 to 13 v AC |
| Wattage | 45 watts |
| Ambient Operating Temperature | 41 °F to +104 °F |
| Transformer | Requires 12V AC UL listed transformer. We recommend LVX Series Transformers |
| Warranty | 3 Year Manufacturer's Warranty |
