RETRO R6B

Designed for the Blue Square® Spectrum™ 360 niche

R6B Brochure Background 5 WEB.png

 Spa Electrics Retro R6B Replacement Pool & Spa Light for the Blue Square® 6” Spectrum™ 360 Niche

The Retro R6B employs a simple and elegant design that perfectly replaces an existing
Blue Square® 6” Spectrum™ 360 light.






Retro R6B
ADAPTER

Retro-fit the Spectrum™ 360 light with a clean, low profile, single piece Adapter Plate.

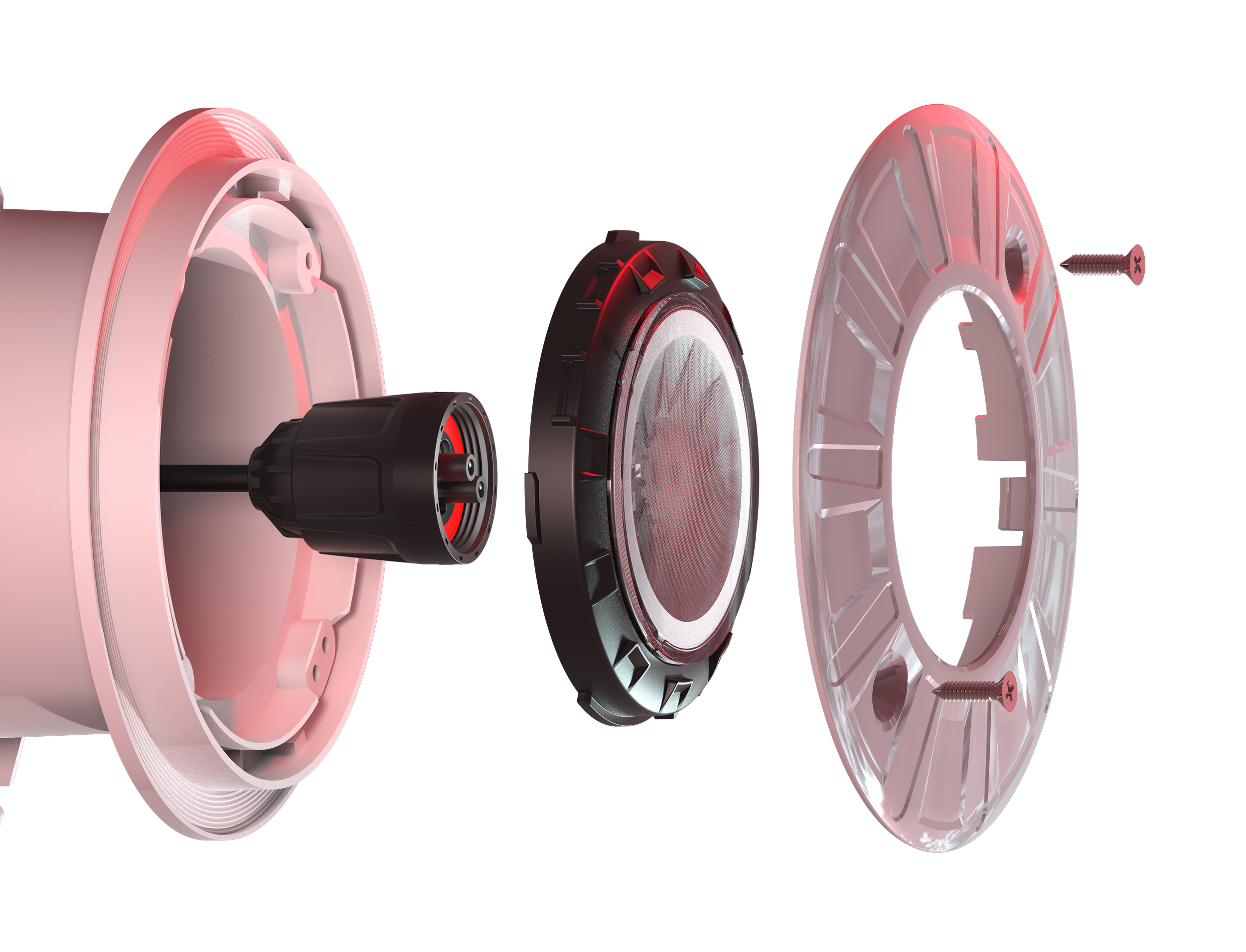

R6B - Exploded V2.4 WEB.png

Secure Fit

It couldn’t be simpler to install the Spa Electrics Retro R6B. Reusing the existing screws and screw holes of the mounting/plaster ring for a perfect, secure fit.

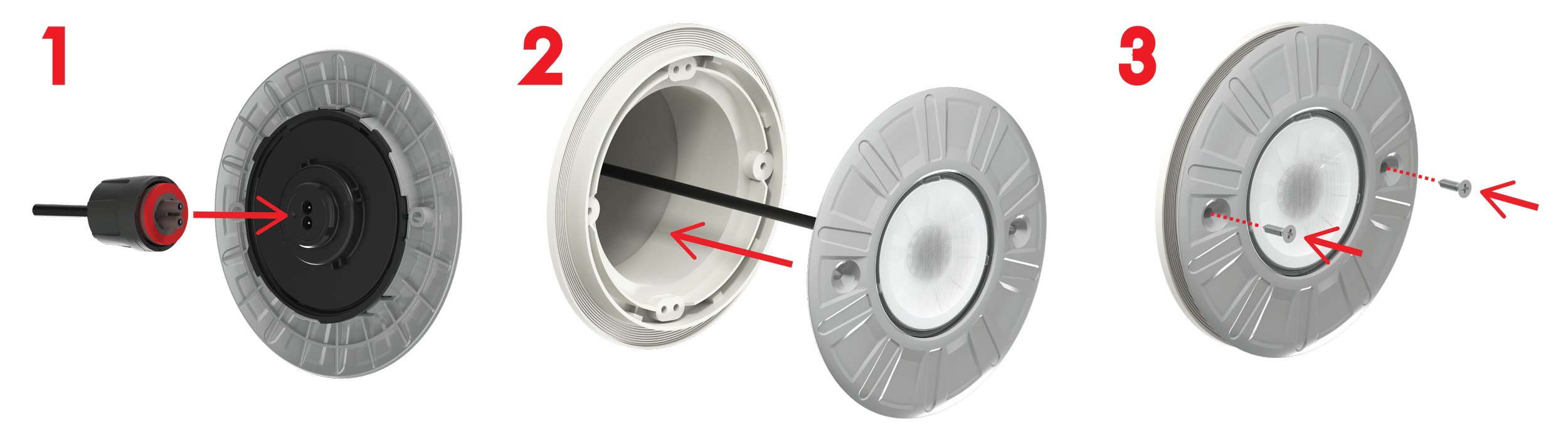

  1. Plug in and secure the power cable to the back of the light with the supplied Quick Connect Plug Kit.

  2. Insert the light and adapter plate assembly to the mounting point, aligning the two screw holes.

  3. Thread 2 screws through the holes in the adapter plate.

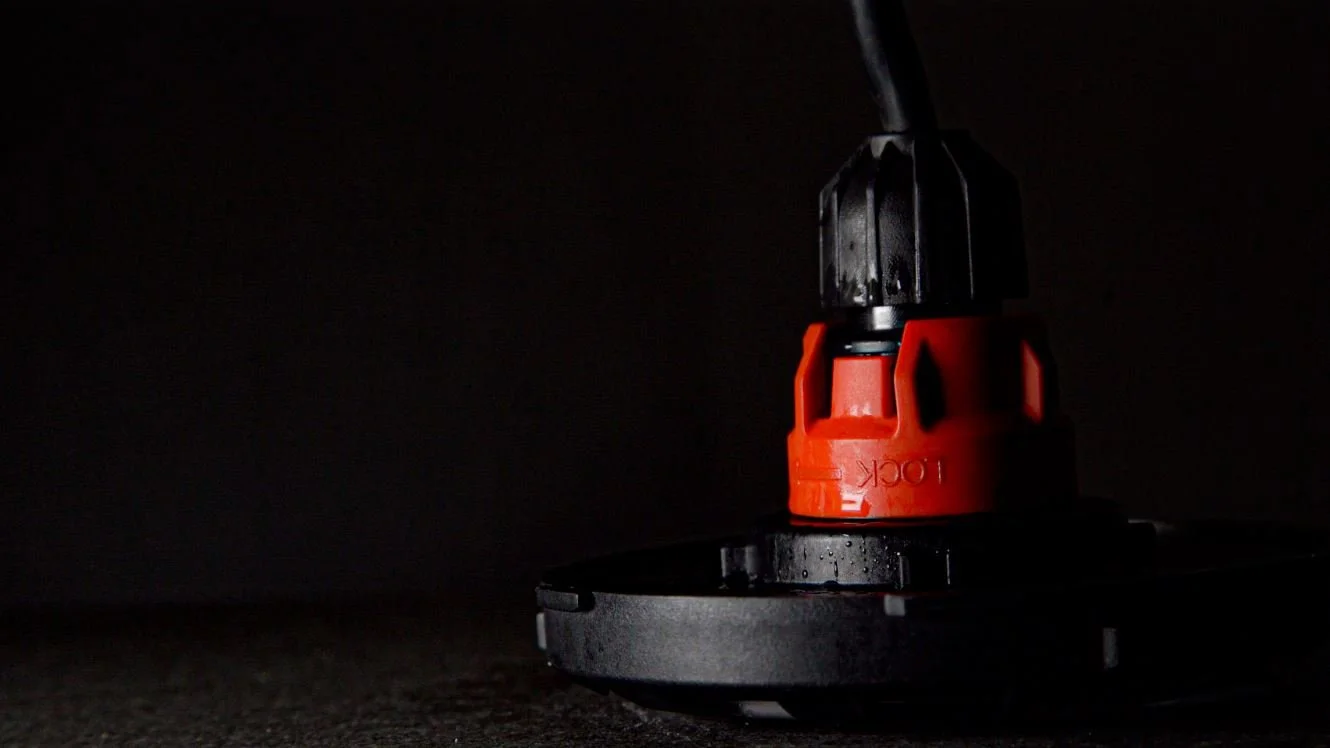

Quick connect plug

No more pulling cables during installation or servicing


 Fast and reliable Installation
with Retro R6’s Quick Connect Plug

Say goodbye to changing cables forever with Retro R6’s Quick Connect Plug. Connecting to the existing pool light cable in the niche, the UL Listed Quick Connect Plug ensures fast and reliable installation while also enabling easier future servicing in the field.

Extra Safe Low Voltage 12VAC

The UL Listed Quick Connect Plug power offers safe low voltage connection for all pool users as well as for future servicing. Simply install a transformer for conversion.

Built to last

‘Super Cool’ Technology for maximum performance

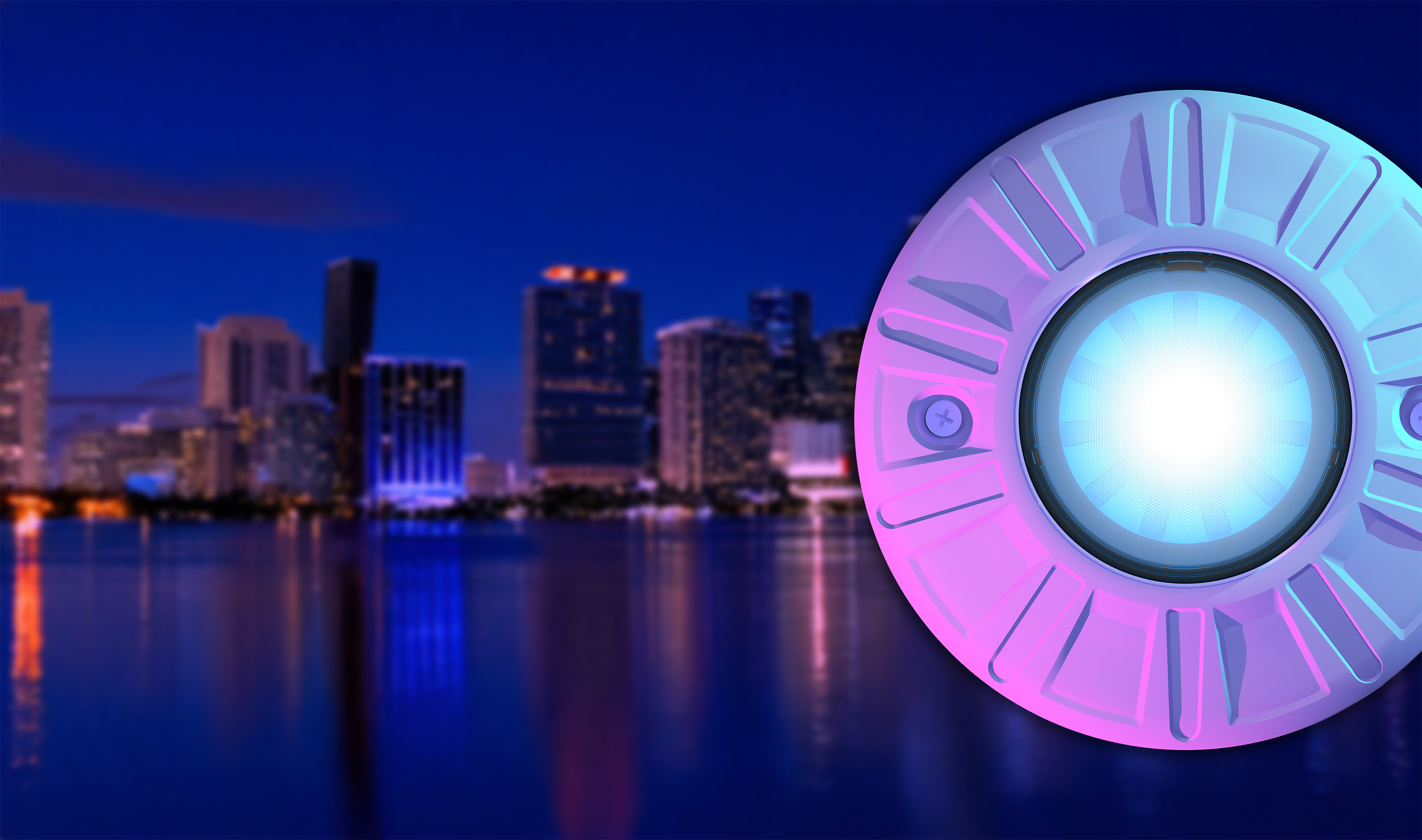

R6B-FrontView-Stylised 2.png

Designed by Builders, for Builders.



Engineered for Durability and Brightness

The Retro R6B light provides superior illumination to deliver a lighting solution for your pool or spa. The forward-facing Heat Sink along with the slim design and modern profile, maximise the longevity and performance of the light.



 Technical Specifications

Light Source Ceramic Light Engine (LED)
LED Colors MULTI PLUS
MULTI PLUS Compatibility Wall Switch Operation and all major pool controller brands including: Pentair® IntelliTouch®, Hayward® Omnilogic®, Aqualink®
Niche Compatibility Blue Square® Spectrum™ 360 6" Niches
Cable Compatability Up to 12AWG size
IP Rating IPX8
Installation Types Concrete
Voltage 10.5 to 13 v AC
Lumens 1000
Wattage 15 watts
Ambient Operating Temperature +32 °F to +104 °F (0 °C to +40 °C)
Transformer Requires 12V AC UL listed transformer. We recommend LVX Series Transformers
Warranty 3 Year Manufacturer's Warranty


All manufacturer names, trademarks, and part numbers (including Pentair®, Hayward®, Jandy®, Blue Square®, Carvin® and PAL®) are used solely for identification and compatibility purposes. Spa Electrics is an independent entity and is not affiliated with, associated with, or endorsed by any original equipment manufacturer. Spa Electrics is an independent manufacturer of pool and spa lighting products
