Pentair GloBrite Replacement Pool Light
An innovative pencil light retro-fit solution that’s easy to install, long lasting & serviceable!
A Perfect Fit

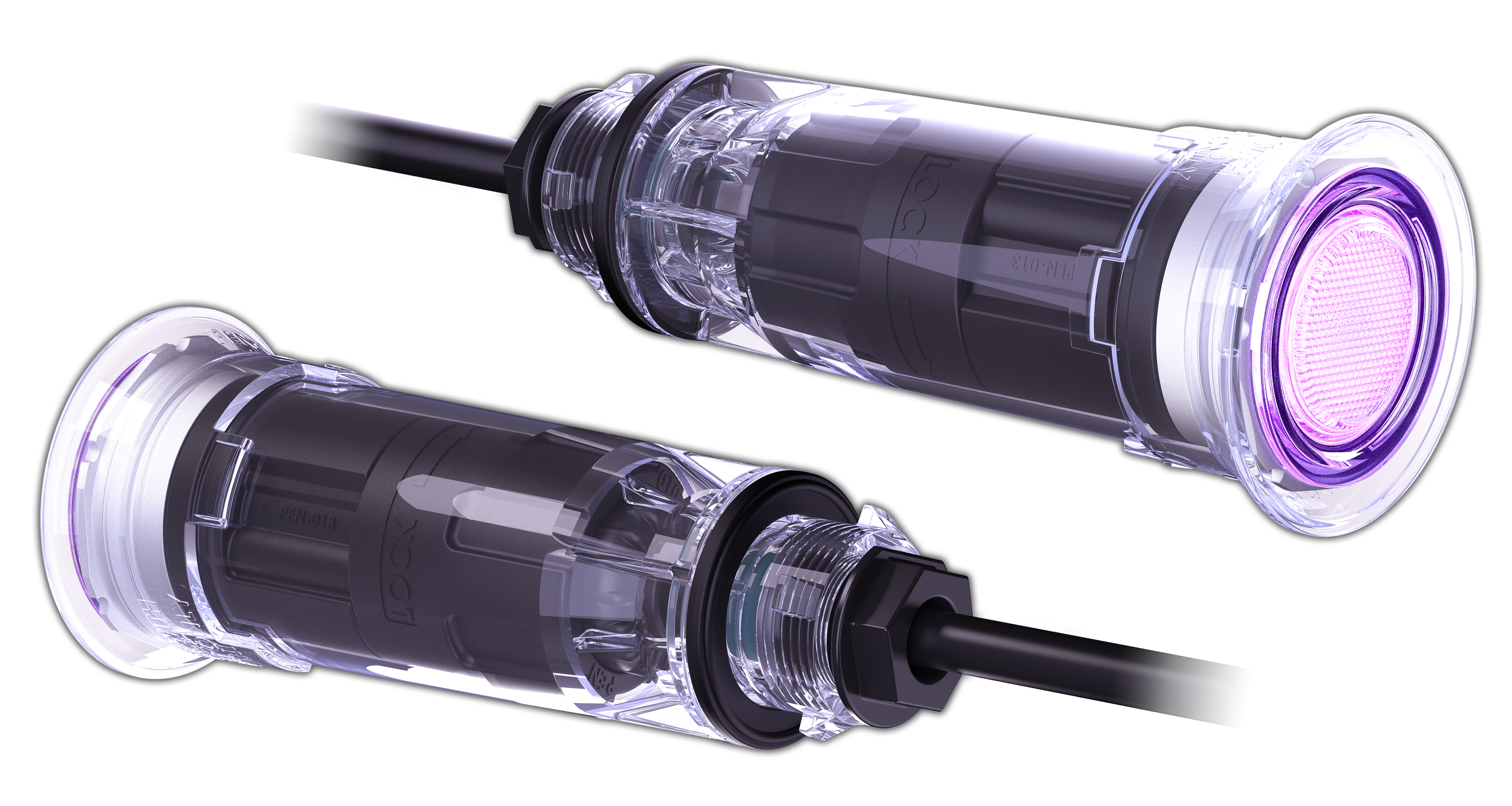

The Retro T1G Globrite Replacement Light uses the existing features of a Pentair GloBrite niche/fitting to create a secure, sealed fitment.

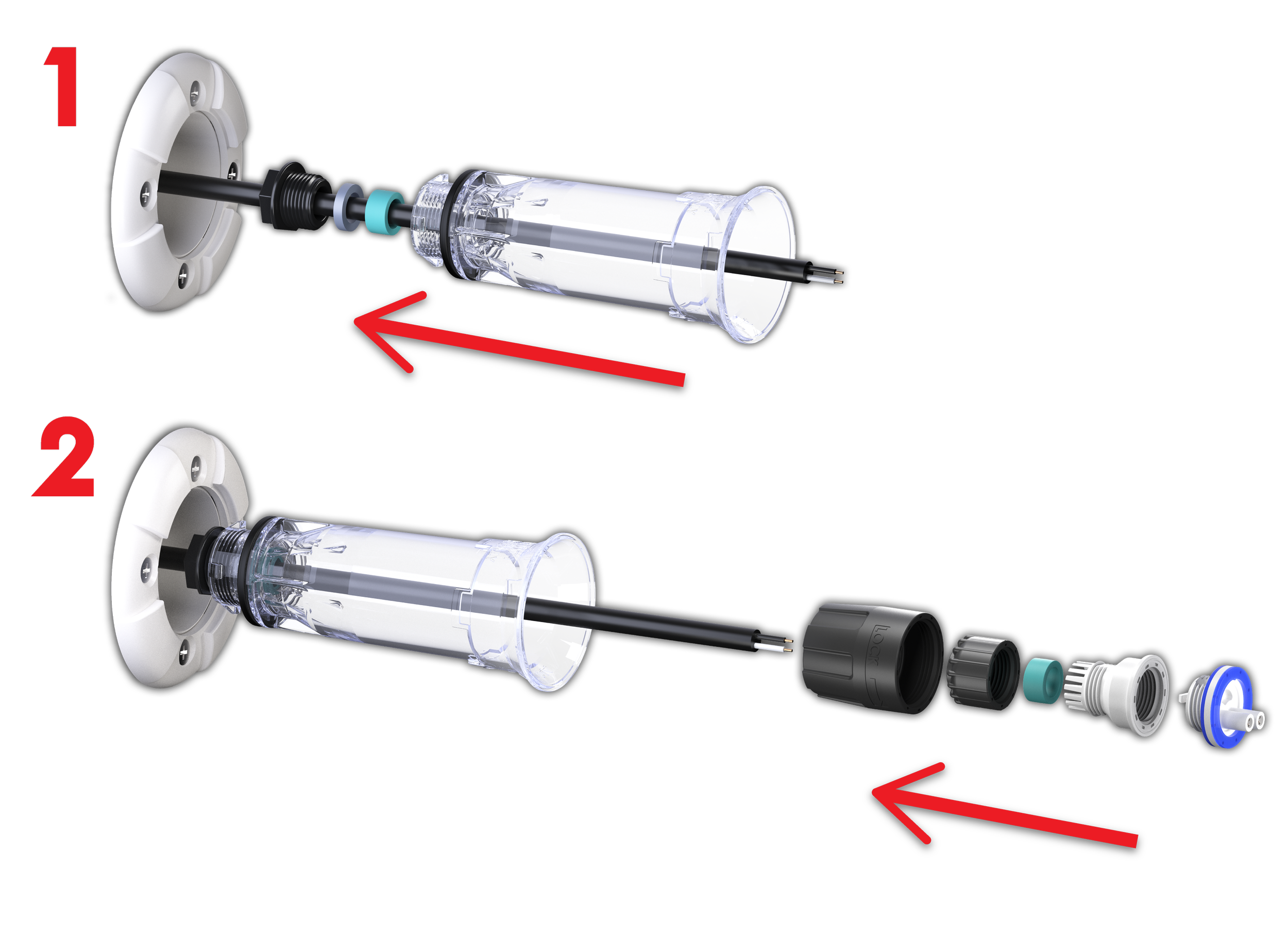

1. The Globrite Adapter, seals, washer and nut are fed onto the existing Globrite or Microbrite cable.
2. The Plug Assembly is assembled onto the end of the cable.

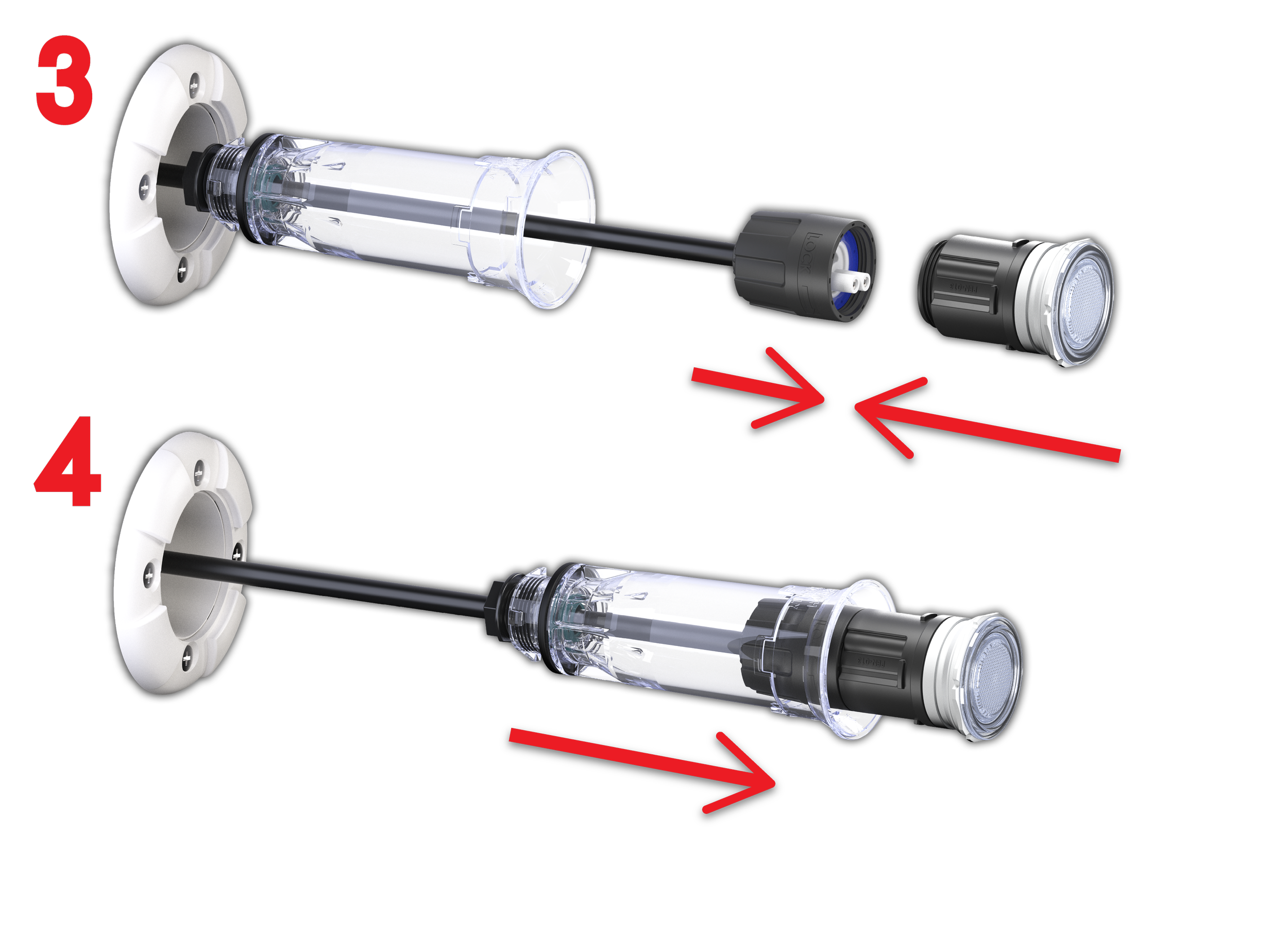

3. Attach the Light Assembly to the Plug.
4. Feed the Globrite adapter up the cable and over the Light Assembly.

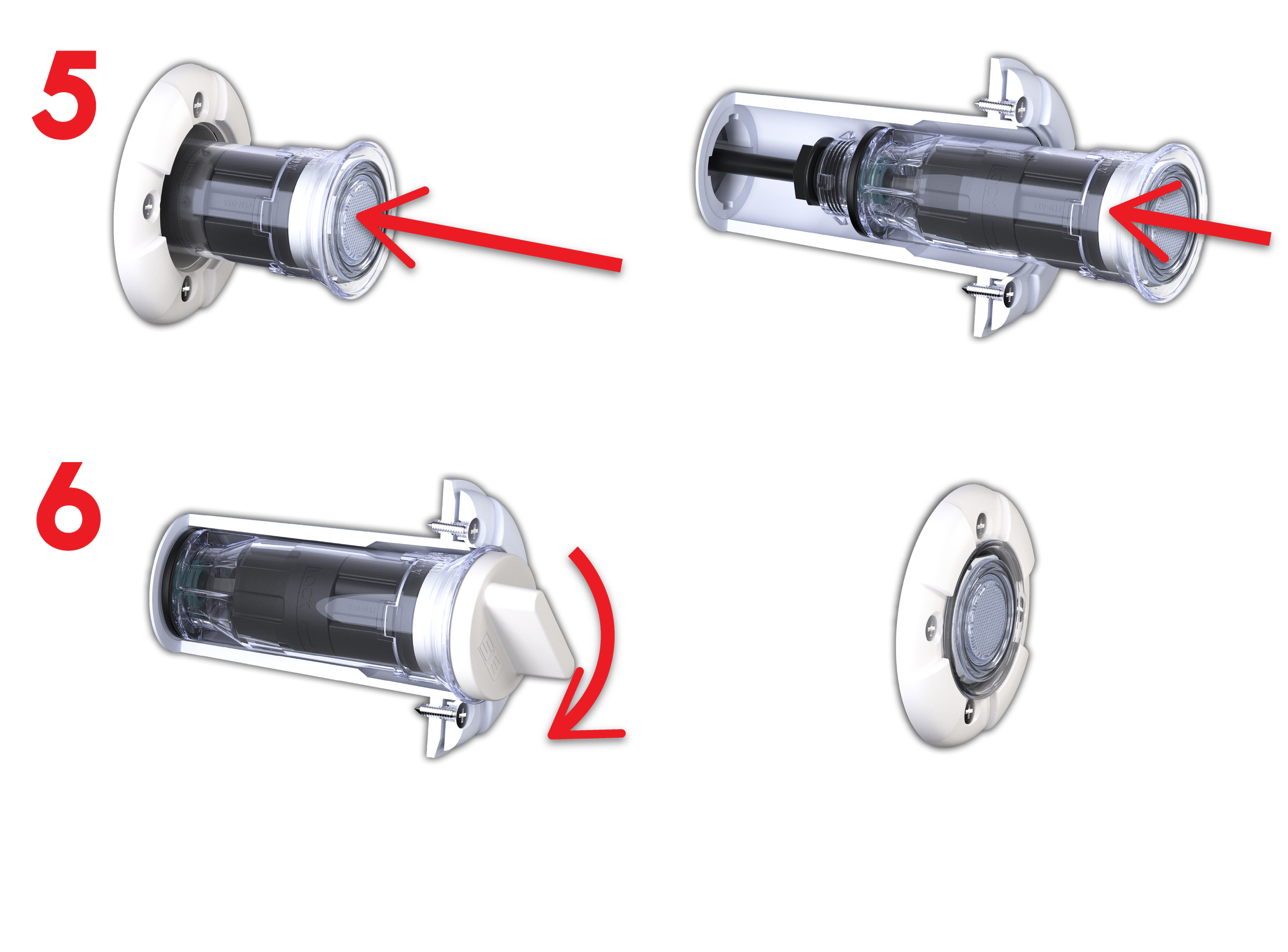

5. push the Light & Globrite adapter assembly into the existing niche/fitting, drawing cable through the conduit at the same time.
6. Using the included Locking Tool, twist the assembly 45 degrees clockwise to lock and seal the light in place.
Fits in all GloBrite niche variants
TECHNICAL SPECIFICATIONS
| Light Source | Ceramic Light Engine (LED) |
| Available Colors | MULTI PLUS |
| MULTI PLUS Compatibility | Wall Switch Operation |
| Spa Electrics LiT YARD 2 Outdoor Lighting Controller | |
| Hayward Omnilogic | |
| Pentair IntelliTouch® / EasyTouch® | |
| Zodiac/Jandy RS (REV R - Current) | |
| Zodiac TRi® | |
| IP Rating | IPX8 |
| Installation Types | Pentair Globrite Niche (Concrete, Fiberglass, Vinyl) |
| Voltage | 10.5 - 13v AC |
| Wattage | 8 Watts |
| Ambient Operating Temperature | +32 °F to +104 °F (0 °C to +40 °C) |
| Warranty | 3 Year Manufacturers Warranty |
| Pool Controllers | Compatible with major brand pool controllers |
| Transformer | Requires 12V AC UL listed transformer. We recommend LVX Series Transformers |
