Retro T1K Replacement Pool Light
for Carvin Starlight fittings
An innovative pencil light retro-fit solution that’s easy to install, long lasting & serviceable!
Retro t1k ADAPTER Installation
A perfect fit for an existing Carvin Starlight fitting.

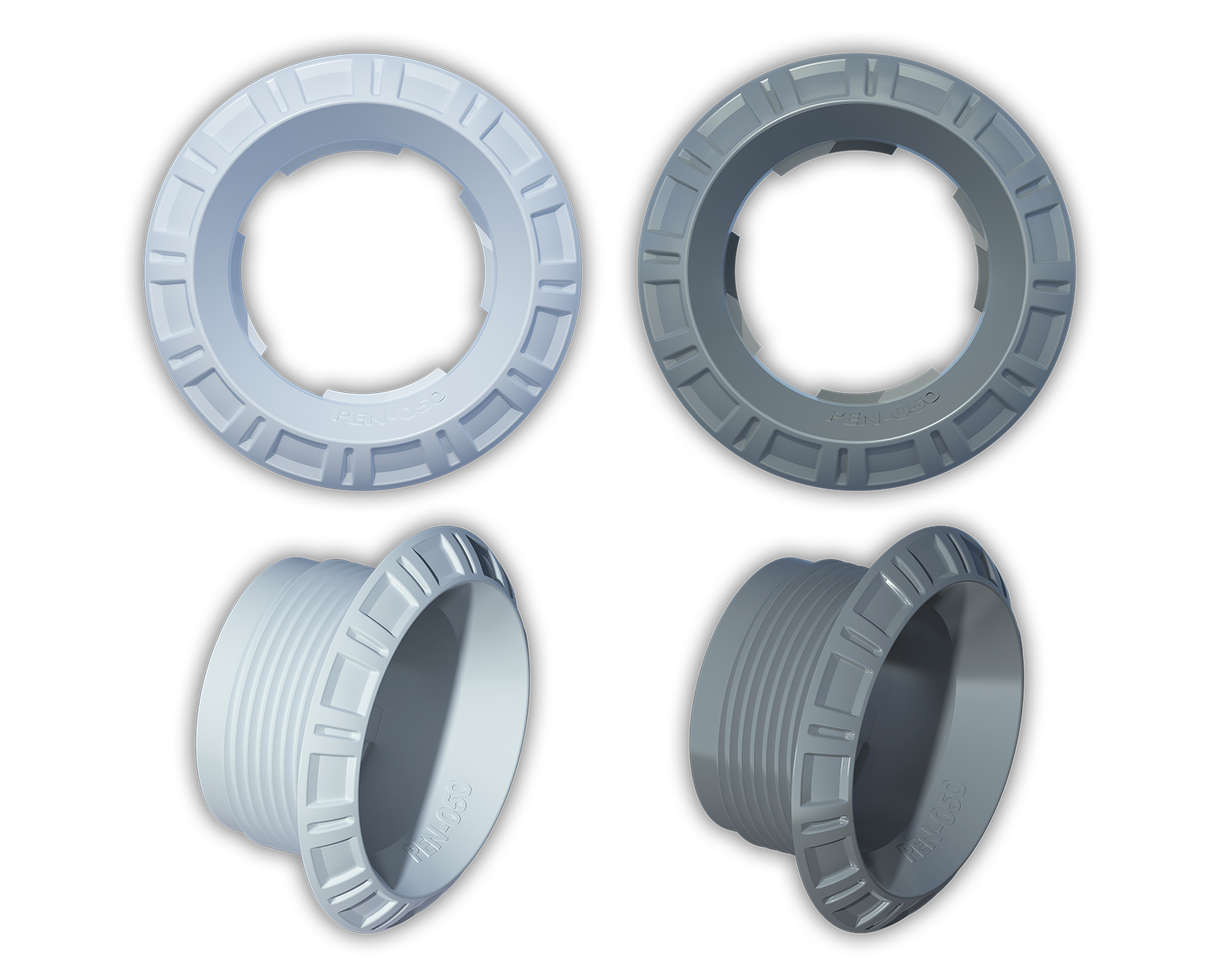

Elegant Design
In your choice of two colors (White or Grey) the adapter accentuates the existing fitting.

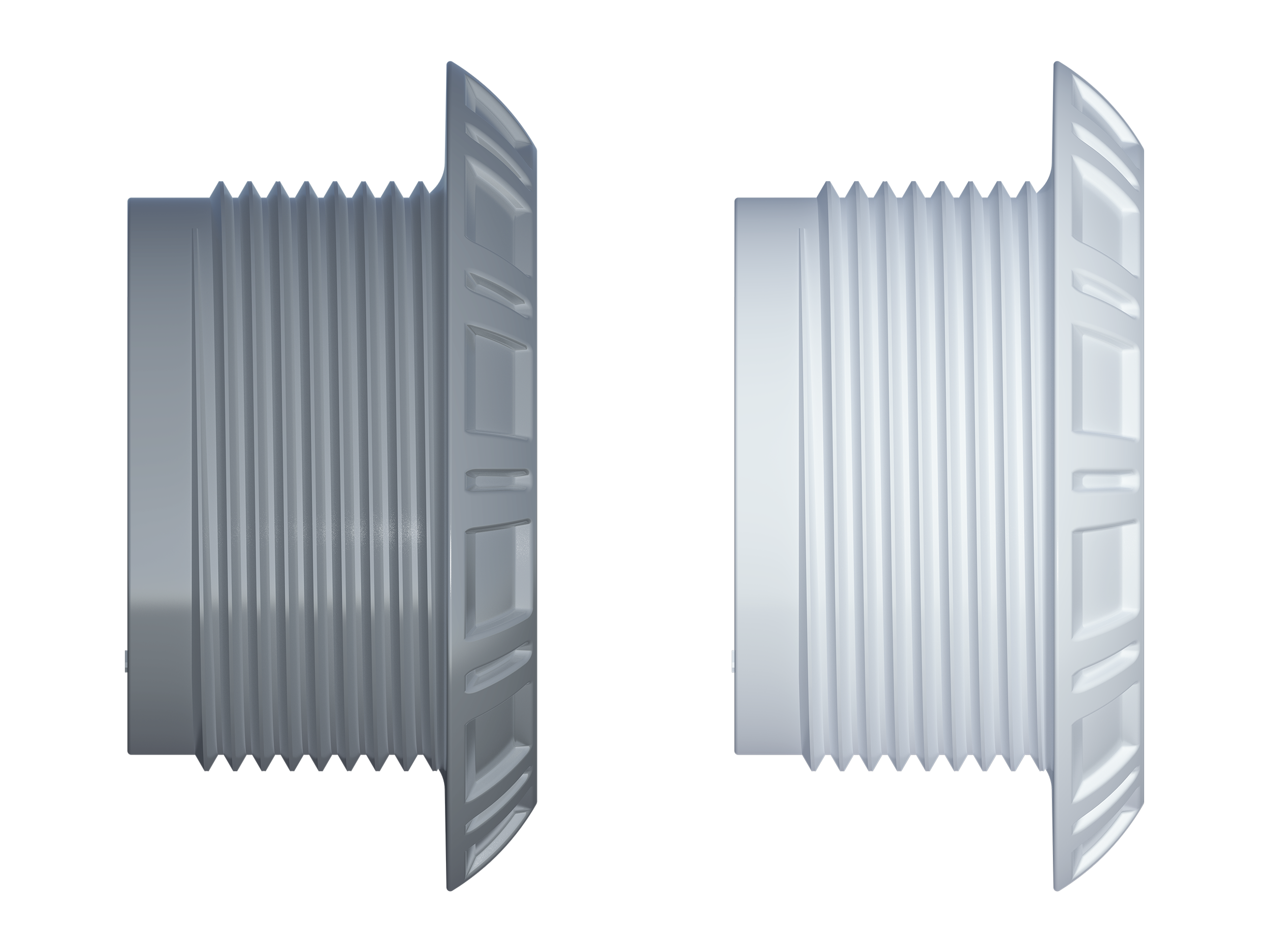

Long Reach Thread
The Retro T1K adapter has a long threaded section to easily reach the thread inside the existing Carvin Starlight fitting.
Installation Overview

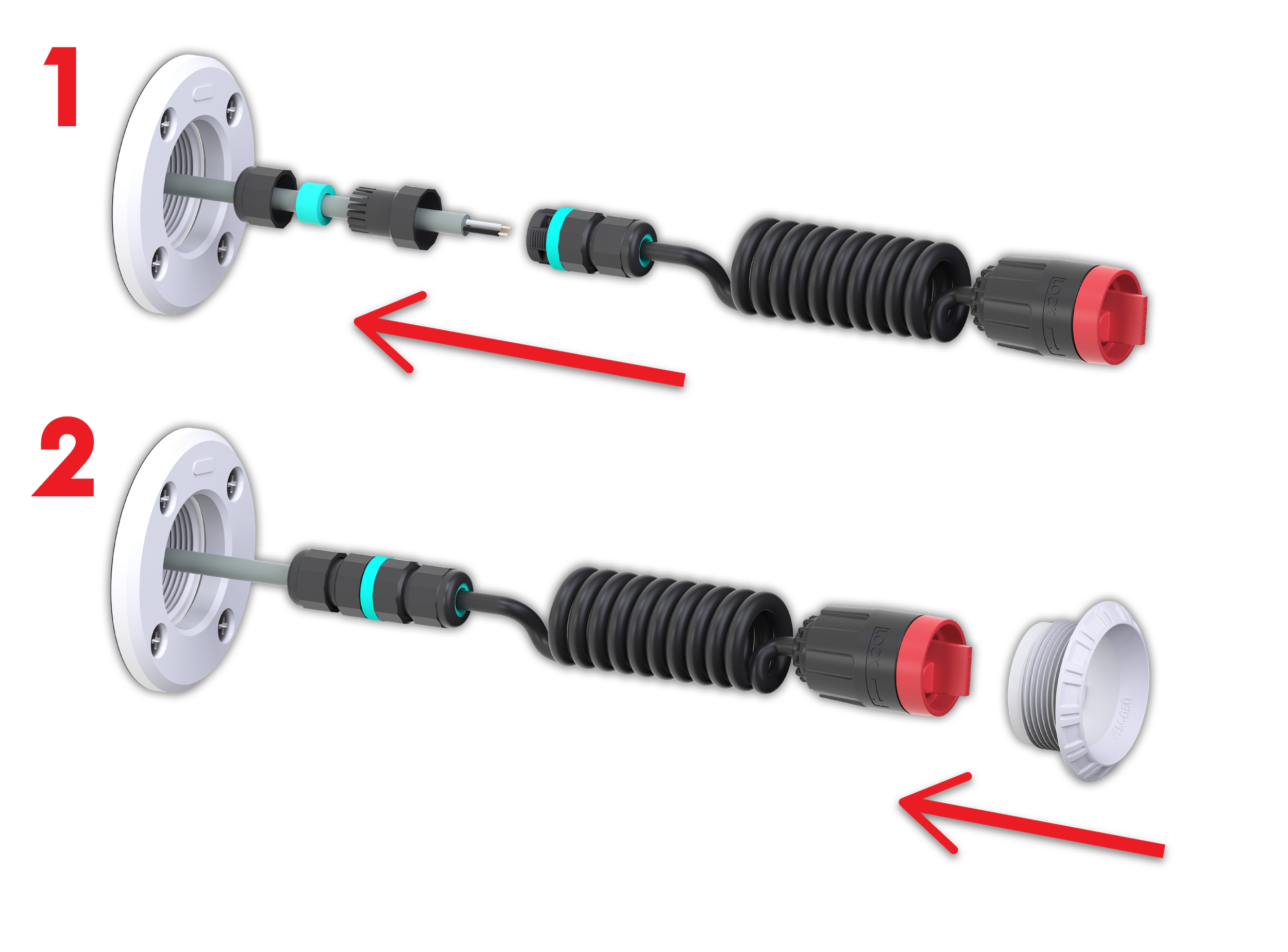

1. Using the included Cable Joiner, attach the cable and Plug Assembly to the existing cable.
2. Feed the Retro T1K Adapter over the cable.

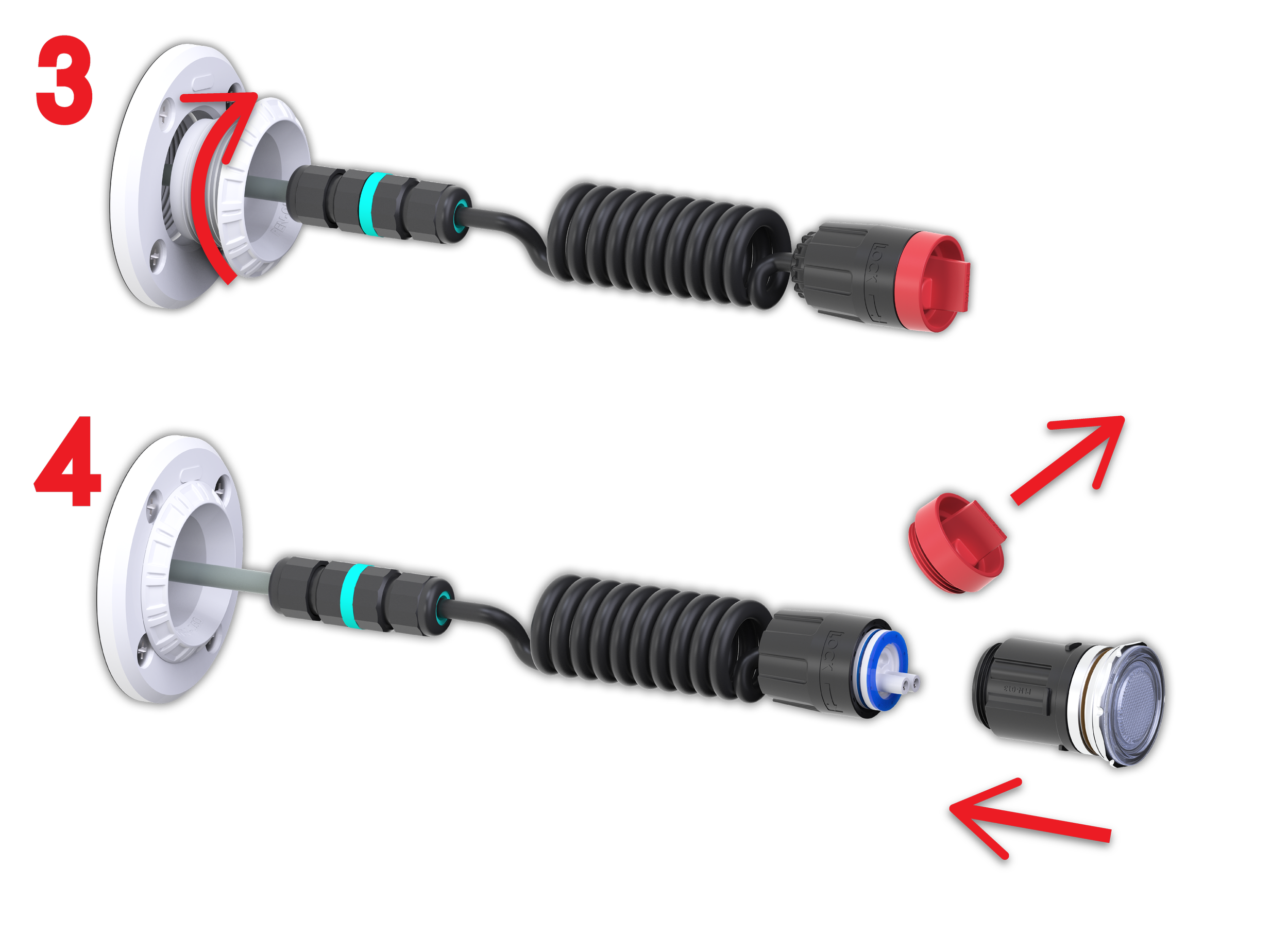

3. Thread the Retro T1K Adapter clockwise into the existing Carvin fitting.
4. Remove the Plug Cover and then attach the Retro T1K Light Assembly onto the Plug.

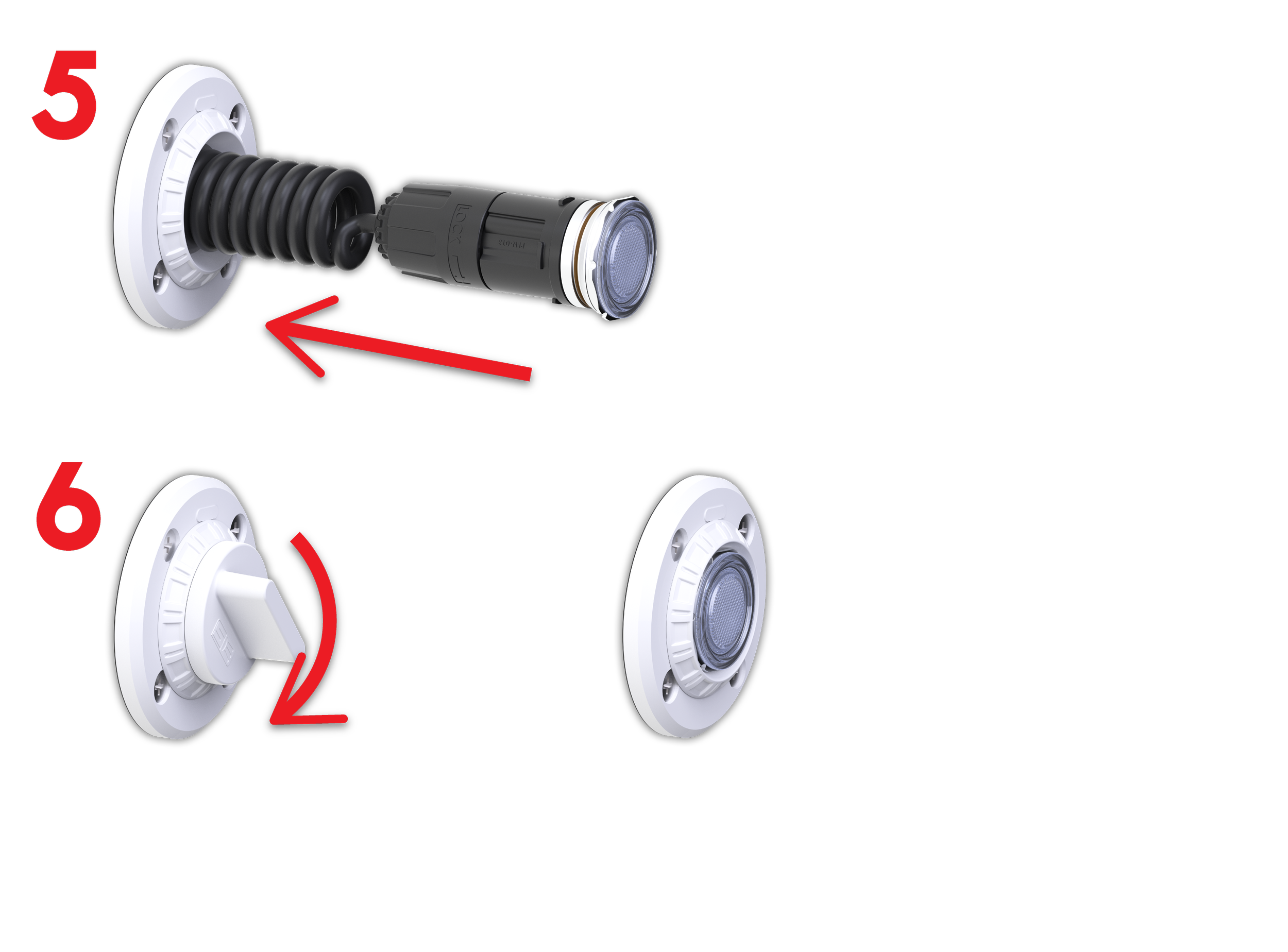

5. Feed the Cable and Light Assembly into the existing fitting.
6. Using the included Locking Tool, twist the assembly 45 degrees clockwise to lock and seal the light in place.

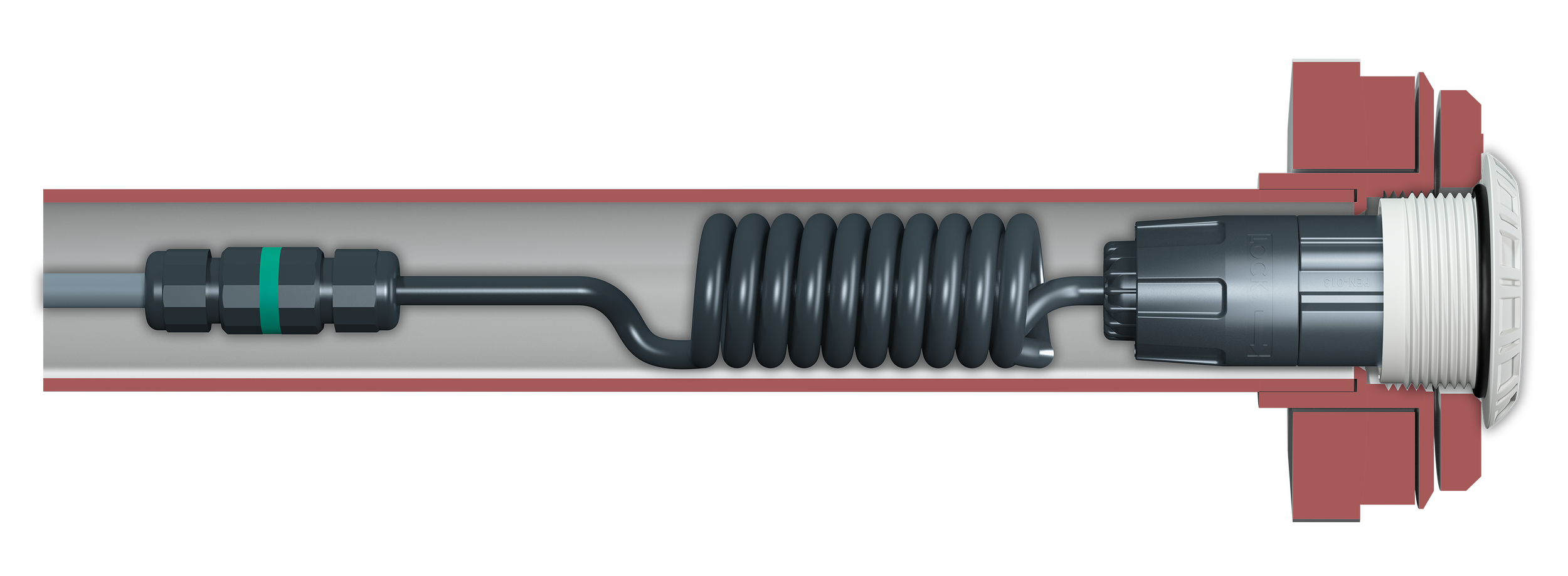

CURLY CABLE
All the cable storage you need,
now in a pipe

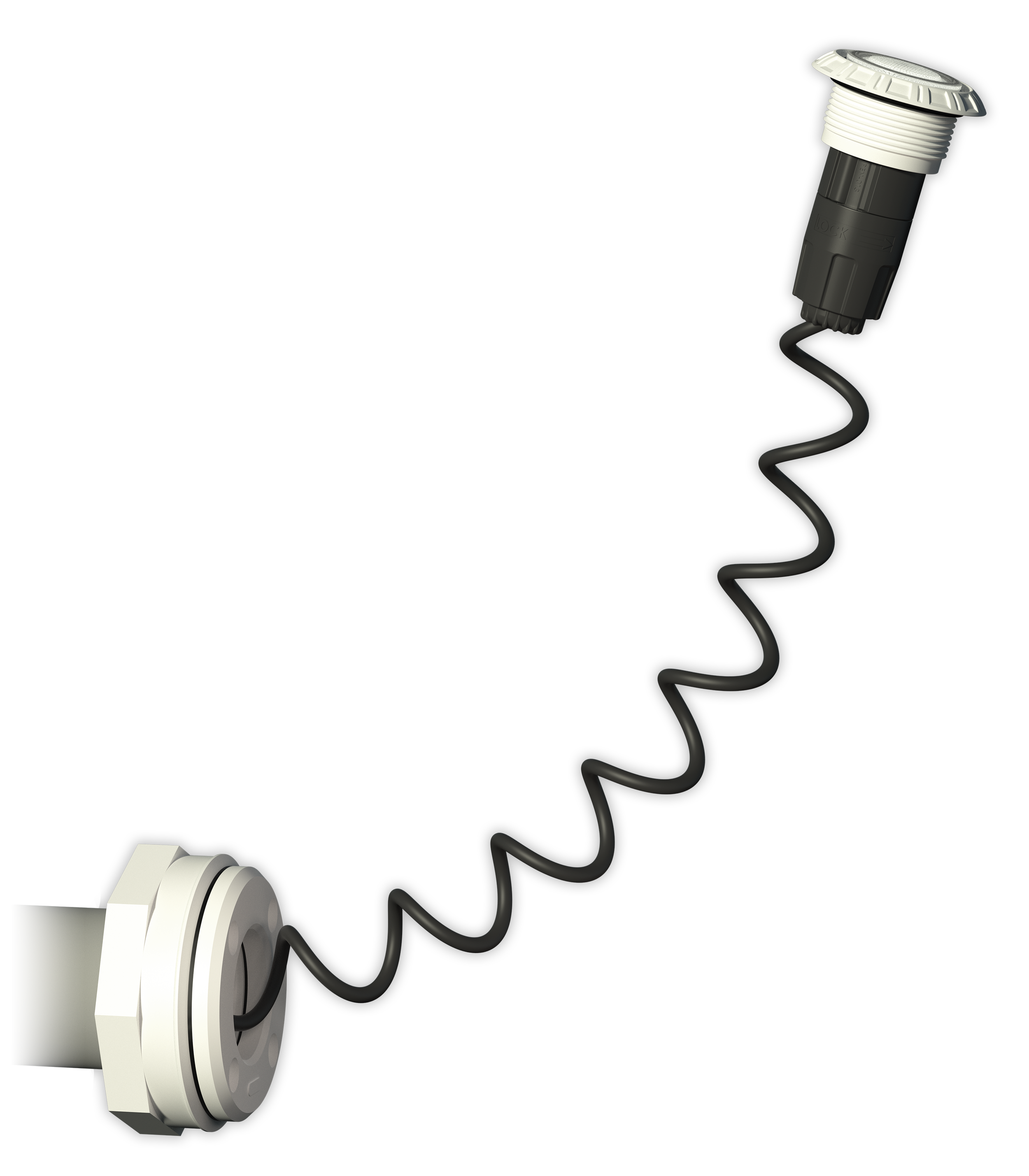

The Curly Cable design, paired with the UL Listed Quick-Connect Plug, allows the light to be taken out, above the water line, without the need to pull the cable through the conduit.
Cable Joiner Included
Easily wire the existing cable into the included Cable Joiner, making installation quick and simple.
QUICK CONNECT
PLUG
Servicing Made Easy
Easily Remove the Retro T1K light with the Quick Connect Plug
EFFORTLESS
INSTALL
Light Installation Tool
Effortlessly install and maintain your Retro T1K light with precision! Our innovative design allows you to seamlessly lock and secure the light into the existing fitting, ensuring a flawless installation. When service is needed, the specially engineered tool—included with every Retro T1 product—makes removal swift and hassle-free. Experience convenience and reliability, redefined.
TECHNICAL SPECIFICATIONS
| Light Source | Ceramic Light Engine (LED) |
| Available Colors | MULTI PLUS |
| MULTI PLUS Compatibility | Wall Switch Operation |
| Spa Electrics LiT YARD 2 Outdoor Lighting Controller | |
| Hayward Omnilogic | |
| Pentair IntelliTouch® / EasyTouch® | |
| Zodiac/Jandy RS (REV R - Current) | |
| Zodiac TRi® | |
| IP Rating | IPX8 |
| Installation Compatibility | Carvin Starlight fittings |
| Voltage | 10.5 - 13v AC |
| Wattage | 8 Watts |
| Ambient Operating Temperature | +32 °F to +104 °F (0 °C to +40 °C) |
| Warranty | 3 Year Manufacturers Warranty |
| Pool Controllers | Compatible with major brand pool controllers |
| Transformer | Requires 12V AC UL listed transformer. We recommend LVX Series Transformers |
